RunCommandProxy with Interupt Signal

[Spaeth, Alexander]

Dear tbot community,

I was programming with tbot's RunCommandProxy and found interesting behavior surrounding the command sendintr() and terminate().


  1.  Code (Reference code.png)

  *   Start the SSH Connection with the run() command
  *   Send Password
  *   IF Password Prompt shows up again --> Wrong Password
     *   Send CTRL-C
  *   IF Password Prompt doesn't show up --> Right Password
     *   Send "exit"


  1.  Test Setup
     *   Setup LocalLab

     *   LocalHost is also LabHost
     *   DUT is connected to LocalHost/LabHost

     *   Setup RemoteLab

     *   LocalHost is separate from LabHost
     *   LocalHost connects with SSH to LabHost
     *   DUT is connected to LabHost


  1.  Findings
     *   LocalLab (Reference local_Lab.png)

     *   When Test is performed on LocalLab no problems arrise

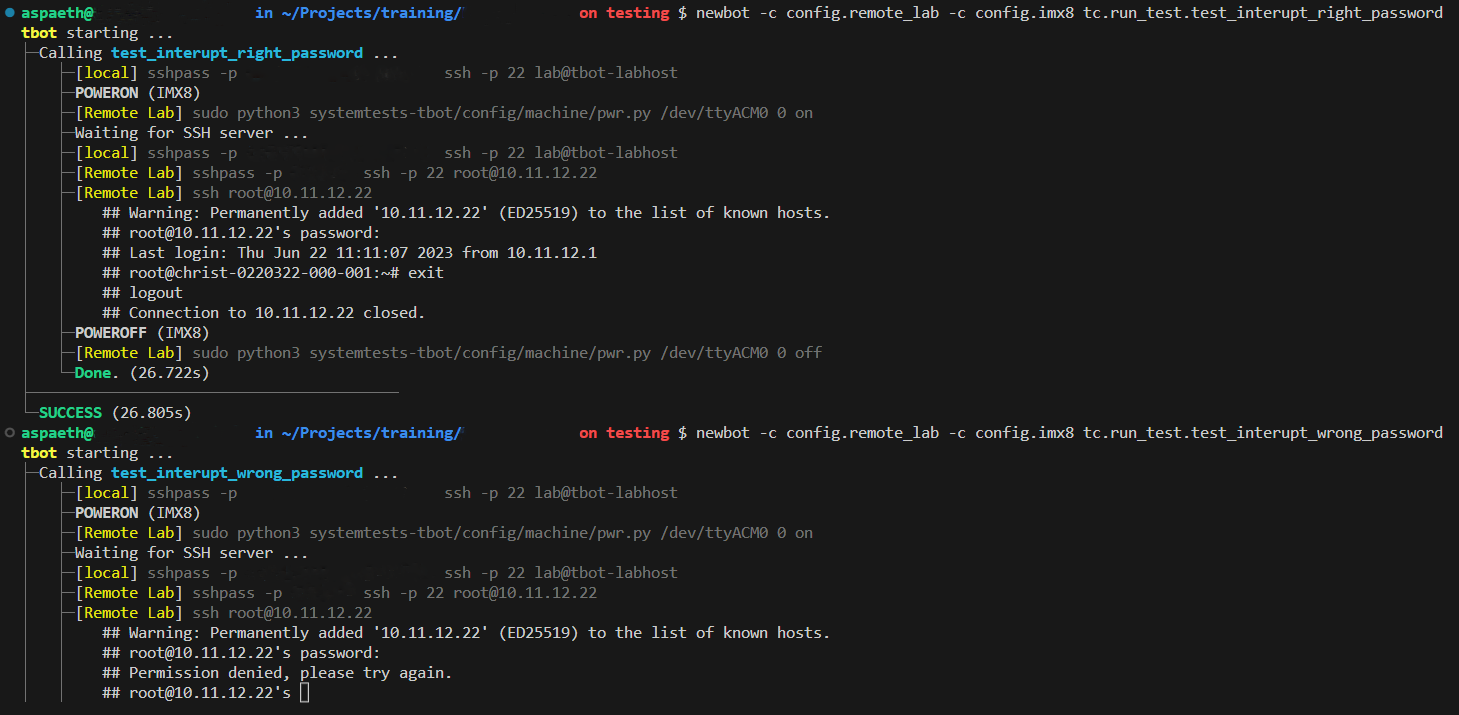

     *   RemoteLab (Reference remote_lab.png)

     *   When Test is performed on RemoteLab it gets stuck


  1.  Debugging

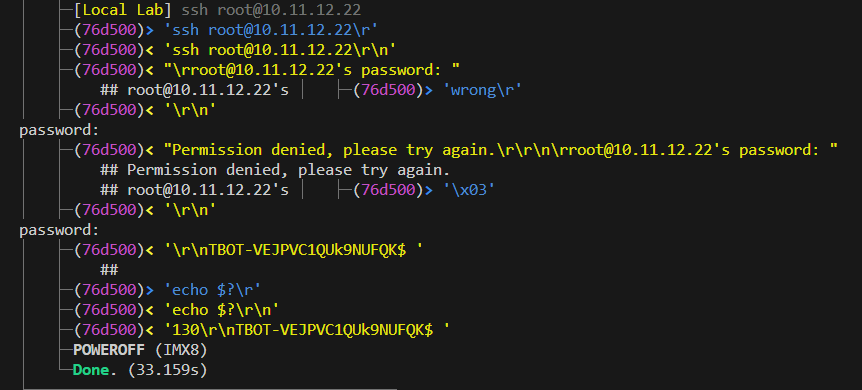

     *   LocalLab (Reference debug_local_lab.png)

     *   The CTRL-C gets correctly translated to \x03
     *   The Channel sends '\r\n' back
     *   terminate() cleanly closes the RunCommandProxy

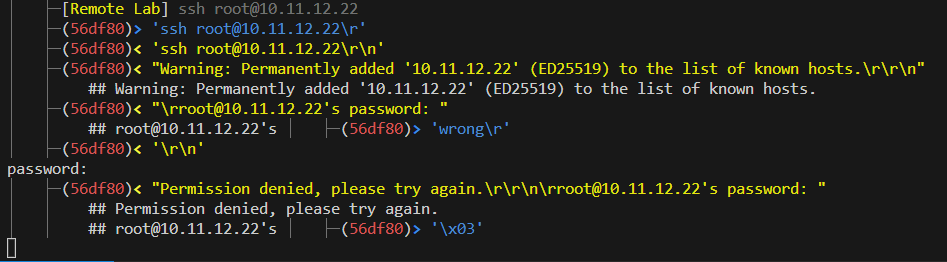

     *   RemoteLab (Reference debug_remote_lab.png)

     *   The CTRL-C gets correctly translated to \x03
     *   The Channel sends nothing back
     *   terminat() gets stuck on the line 204 in tbot/machine/linux/util.py: next(self._cmd_context)

After analyzing the behavior I have to ask the question, what am I doing wrong?
I would be happy about any help or tips you can provide.

Best Regards

aspaeth
